Weatherproof Pressure Switches

PRESSURE - Switches

Weatherproof Pressure Switches

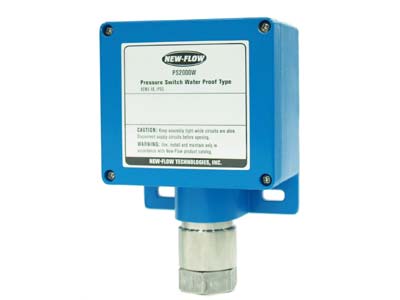

PS2000W

The PS2000W is a weatherproof pressure switch which is designed to be used in control systems. Has high set point repeatability and narrow dead band features. A variety of range selections are available upon request. Easily adjusted set point.

Pressure Ranges from 10 - 2400 psi
Proof pressure to 4000 psi
Temperature range from -20⁰C to +205⁰C
Housing - die cast Aluminium, epoxy painted
Wetted parts - Stainless Steel 316L
Pressure element - welded type diaphragm
Conduit Connection - 3/4" or 1/2" NPT Female
Process connection - 1/2" or 1/4" NPT Female
Switch data - one SPDT & two SPDT Microswitch,
15 Amps 125/250V,
Gold contact microswitch, 1 Amp 125/250VAC
