TEMPERATURE - Switches

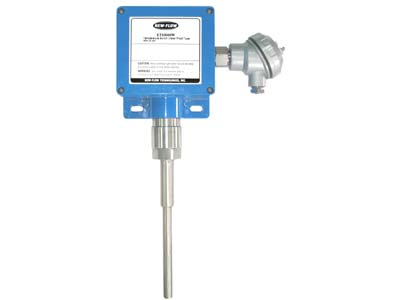

Weatherproof Temperature Switch
ETS3000W
Weatherproof temperature switch. Either remote mounted via capillary (as shown) or direct mounted with sensing bulb.
Temperature ranges (liquid filled type) -70
o
C to 400
o
C
Temperature ranges (gas filled type) -200
o
C to 650
o
C
Remote capillary length 20 mtr max. (liquid filled), or 30 mtr (gas filled)
Weatherproof class NEMA 4, 4X, IP65
Housing - Aluminium alloy die cast, epoxy painted
Sensing material 316 St/St
Process connection 1/2" or 3/4" NPT male
Conduit connection 1/2" NPT(F)
Electric contact, 1-2 contacts
Micro switch type SPDT
Nominal voltage 250VAC max, current 5 Amp max.
Alternatively 28Vdc, 5Amp (ohmic load), 3Amp (inductive load)
Contact material Pure silver 999.9
Ambient temperature -20
o
C to 70
o
C
