LEVEL - Sensors

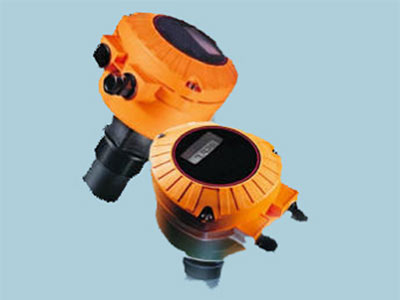

Ultrasonic Liquid Level Transmitters
Power supply: 12 – 30 Vdc, loop powered
4 – 20 mA or HART output
Applications include Level, Distance, Volume or Flow
Measuring ranges from 0.3 to 12 metres
Environment protection: IP67
Housing material Glass filled Nylon, or UPVC
Wetted material either PVDF or UPVC
Models include flanged, screwed or suspended sensors
Accuracy unaffected by changes in density, dielectric and viscosity.
Operating temperature: -20
0
C to 70
0
C
Operating pressure: -0.25 to 3 bar maximum
