TEMPERATURE - Transmitters

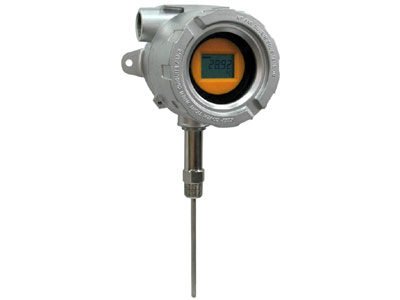

Intelligent Temperature Transmitter
Type - T1000
Explosion proof temperature transmitter
Class I, Groups A, B, C & D
Class II, Groups E, F & G
NEMA 4X
Enclosure housing in Aluminium or Stainless Steel 316
Input from thermocouple, RTD, pt100
Programmable by PC
4 1/2" digital display
Output - Linearised 4-20mA, or 20 to 4mA
Ambient temperature -40
o
C to + 85
o
C
Power supply 12 to 35 Vdc
Sensor connection 1/2" or 3/4" available
Conduit connection 3/4" NPT-F
RTD and Thermocouple elements supplies as required.
