Direct Mount Pressure Transmitters Type 8000

PRESSURE - Sensors

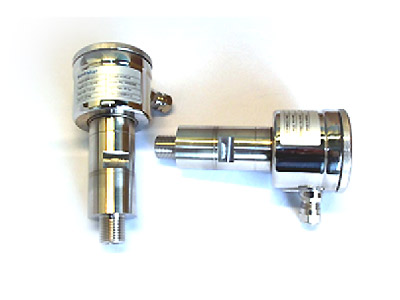

Direct Mount Pressure Transmitter Type - 8000

Direct Mount Pressure Transmitters
Type - 8000

All Stainless Steel transmitter with 316 Stainless Steel welded diaphragm
Accuracy 0.2% of span
Zero / Span adjustable
Rugged compact design
4-20mA output
Temperature compensated
Intrinsically Safe ATEX II 1G EEx ia IICT4
Marine approved
Threaded or flanged process connections
Protection to IP66 as standard, IP68 Optional
Vacuum, Gauge or Absolute ranges
Optional 3 ½" programmable display
Measuring ranges: 0,1 bar to 50 bar
Output signal: 4-20 mA, 2-wire
Adjustment: Zero and span internally
Overall accuracy: 0,2% of adjusted span
Power supply: 13 to 40 VDC
Electrical connection: PG9 / ½" NPT / M20
Process temperature: –20°C to +80°C
Ambient temperature: –20°C to +65°C
