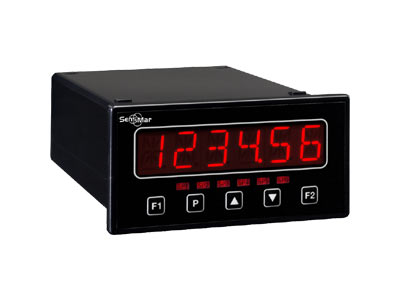

Mini Panel Monitor
Type - MPM-6H

The MPM-6H miniature panel monitor is permanently hard wired to a tank/vessel mounted field device. It computes mass head, or volume for any shape displaying this digitally in engineering units.

Display - 6 digit display with 14mm red numerals
Alarm LED’s - showing setpoint status
Input signal - 4-20mA
Serial port - RS232 or 485
Power supply either- 85-260VAC or 10-72Vdc
Relay output - 2, 4, or 6 x 5A form A relays
Excitation - 24Vdc (50mA max) for power to field device.
Optional Analogue output - 4-20mA isolated
Accuracy - 0.05% of reading
Calibration - factory calibrated for 4-20mA
Panel cutout - 92.5 (W) x 45.5 (H)
