LEVEL - Sensors

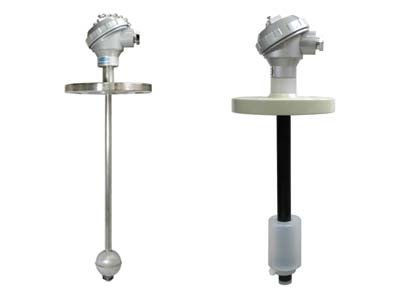

Magnetic Float Level Transmitters
Resolution accuracy: +/-12mm standard, 6mm on request
Material wetted parts available in 304St/St, 316St/St, PVC, PP, PVDF with others on request
Output 2 wire, 4-20mA (500 – 20 kohms)
Power supply: 11 to 30 Vdc
Enclosure housing IP65, explosion proof available
Maximum range: 6000mm (304St/St, 316St/St, PVC, PP, PVDF)
Operating temperature: -40 to +100
o
C (higher available)
Operating Pressure: 0 – 15 kg/cm2 (higher available)
Available with either flanged or screwed process connections
Built to order
