Electronic liquid level transmitters - Marine approved - Solartron KDG Mobrey Measurement Type 9700 8700 series

LEVEL - Sensors

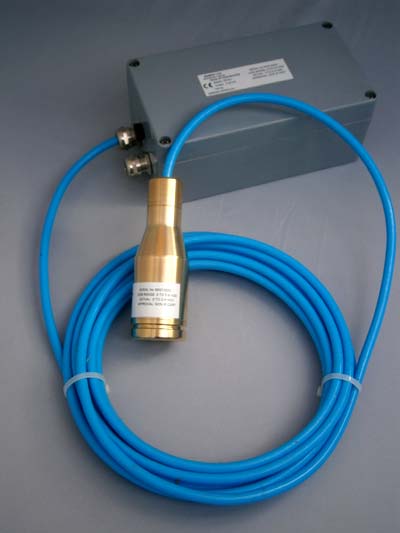

Mobrey Electronic liquid level transmitters - Marine approved - Type 9700 series

Calibrated spans: ranges up to 200 mH20
Sensor: Ceramic capacitive sensor element
Sensor body: IP68 316 Stainless Steel or Alloy Bronze option
Accuracy +/- 1% of calibrated span
Rangeability 10:1
Power supply 24Vdc, 2 wire loop powered
Output 4-20Ma, with remote span and zero option
Sensor cable: Polyurethane or option Flourinated Ethylene Polyprylene (FEP)
Electronics housing: Aluminium Alloy IP67 Grey
Overload: 5x nominal range up to 600 metres maximum
Operating temperature: -20°C to +60°C (internally mounted sensors), or
-20°C to +90°C for externally mounted sensors
Electronics operating temp: -20 to +90°C

Mounting options include: external flanged (many flange sizes available), internally mounted with Stainless Steel tank fixing clamp, pole mounted, or internally suspended.
