INDICATORS

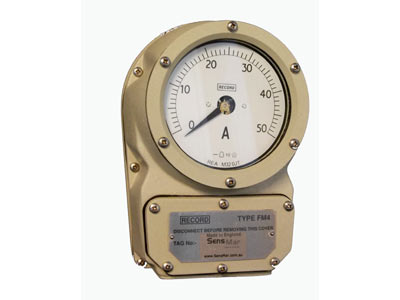

FM4 Moving Coil Analogue Indicators - Intrinsically Safe And Type nL Approved
Type - FM4
The FM4 hazardous area approved analogue field mount indicator is rugged, weather proof in design and tested to withstand severe climatic and operating conditions such as those found on offshore oil and gas installations or exposed process plants.
The FM4 utilises the 240° "Premier" movement.
This proven movement system is manufactured
using the very best precision components and
automated production facility. These factors
give the movement system its inherent reliability,
linearity and accuracy.
The Record FM4 is manufactured to the most
rigorous standards - in line with SIRA
Certification & ISO 9001 and ATEX Quality requirements.
Scale printed to suit customers requirements; litres, %, mm etc
Dial size – 100mm, flat metal dial painted white, with black markings
Input signal – 4-20mA
Accuracy - +/- 1% @ 20° C
Ambient temperature limits - from -25° C to + 70° C
Case – Epoxy-coated die cast LM6 Alloy
Overall dimensions of case
Window – 5mm toughened glass
Weather protection – IP66 (protected against ingress or dust, and powerful jets of water)

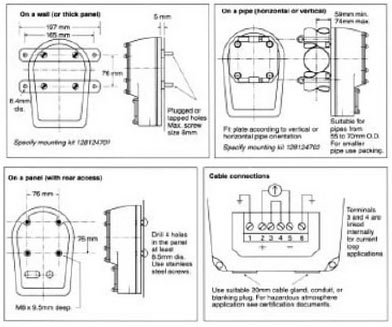

Mounting options available as Wall, Panel or Pipe clamp fitting
Available as Non-Certified, Intrinsically Safe or type nL Hazardous area certification
