INDICATORS

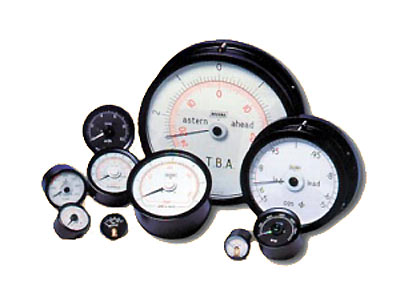

Moving Coil Indicator
Type - Cirscale

Seven standard sizes.
• Accuracy to +/-1% (class 1).
• Long scale 240° Presentation.
• Dial markings to customer’s requirements
• Strong construction.
• Certified for use within hazardous areas
• Robust "PREMIER" pivot & jewel moving coil
movement

This family of circular panel meters/moving coil indicators has been designed for use in the most demanding of industrial applications.

Available in case sizes ranging from 50 mm to 300 mm diameter they are supplied with suitable fastenings for quick and easy assembly into panels.

The Cirscale range utilises the 240° "Premier" movement. This proven movement system has been manufactured using the very best precision components and automated production facility. These factors give the movement system its inherent reliability, linearity and accuracy among moving coil indicators.
Dials are marked to customers requirements and can include coloured indices/lines/bands, dual /multi scales etc.

Instruments are available for AC or dc applications. For large AC or dc current and voltage applications we could supply complete with external current/voltage transformers, shunts, or suitable transducers.

OPTIONAL FEATURES

Illuminated Scales: The Cirscale range offers offers two types of illumination.
Internal Illumination: Long life filament lamps within the case illuminate the translucent dial. Illumination power either 12 V dc or 24 V dc as standard.
External Illumination: Slots in the case allow light to be shone into the acrylic dial, illuminating the scale and pointer.
Rear Zero Adjustment: Available when front zero adjustment is not required, or if a plain glass front is required.
Intrinsically Safe: Certified by SIRA for use in ATEX category 3,2 & 1 respectively, gas group IIC. The technique of intrinsic safety is the highest integrity method of protection available.

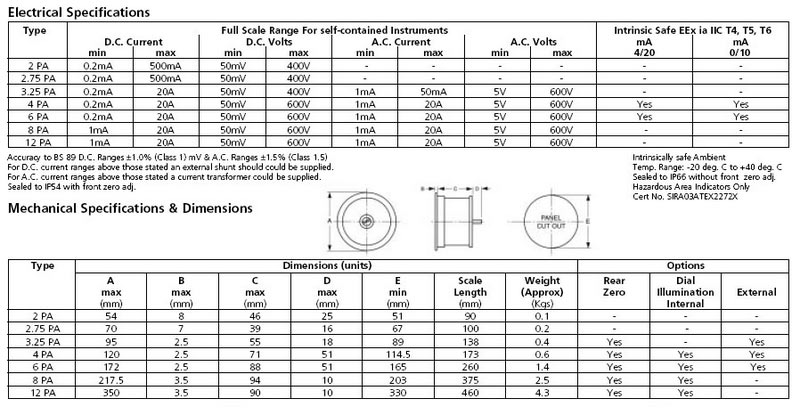

CLICK ON DIAGRAM TO VIEW LARGER
