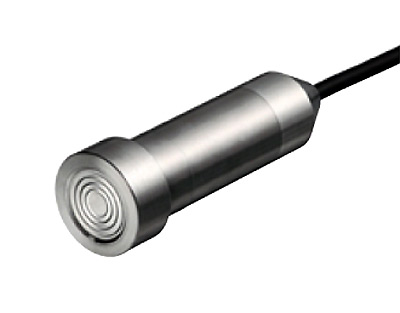

Hydrostatic level transmitters - Marine & I.S. approved - Type Hydrobar
Send us your enquiry about this product
Hydrostatic level transmitters - Marine & I.S. approved - Type Hydrobar

Measuring ranges 0.1 to 10 bar
Strong diaphragms, welded
Output 4-20mA, 2 wire
Zero and span adjustable
Power supply 13-40Vdc (Exi 17-28vdc)
Process temperature -10o to 70oC
Wetted parts 316L standard (optional gold plated diaphragm for sea water applications)
Cable Polyethylene with option of Hytrel or PTFE
Accuracy 0.2%
Temperature compensated
Intrinsically safe to EEx ia IIC T4
Perfect long term stability <0.1% per year)
Remote electronics in Stainless steel housing
