Horizontal Magnetic Level Switch - ABS Type approved product Type - LT204 Flanged type.

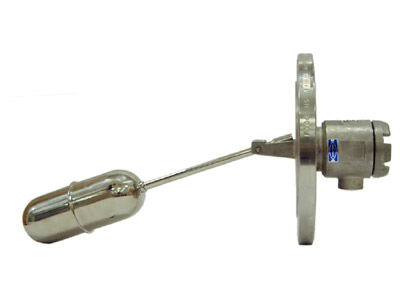

Horizontal Magnetic Level Switch - Marine approved product - Type LT204
Flanged type

The LT204 float operated level switches are suitable for controlling liquid level at a horizontal mounting.
The float equipped with an extended arm moves a coupling magnetic mechanism to actuate
a microswitch to offer ON-OFF contact.

Marine approved level switch
Enclosure housing - weatherproof IP65
Process connection - 1 1/2" ~ 4" flange type
Flange rating - JIS, ANSI or DIN available
Material - wetted parts 316 Stainless Steel
Temperature limits are -30^oC to +150^oC
Pressure limits - 3.0 MPa, optional up to 4.5 MPa
Switch function - SPDT micro switch
Switch rating - 3A/250VAC, 3A/30Vdc, 0.4A/125Vdc
Conduit connection - 1/2" NPT female
Specific gravity - greater than 0.7 standard, with lower available upon request.
