Horizontal Magnetic Level Switch - ABS Type approved product Type - LT203 Flanged type for High Temperature

Horizontal Magnetic Level Switch - Marine approved product - Type LT203
Flanged type for High Temperature

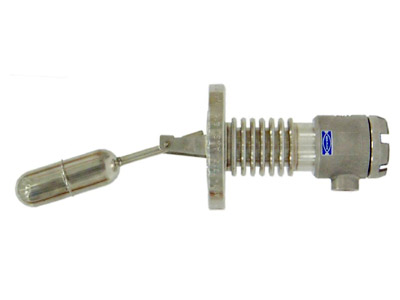

The LT203 float operated level switches are suitable for controlling liquid level at a horizontal mounting.
The float equipped with an extended arm moves a coupling magnetic mechanism to actuate
a microswitch to offer ON-OFF contact. The LT203 is equipped with an extra fin to be able to work under high temperature environment.

Marine approved level switch
Enclosure housing - weatherproof IP65
Process connection - 1 1/2" ~ 4" flange type
Flange rating - JIS, ANSI or DIN available
Material - wetted parts 316 Stainless Steel
Temperature limits are -30^oC to +350^oC
Pressure limits - 3.0 mPa, optional upto 4.5 mPa
Switch rating - 3A/250VAC, 3A/30Vdc, 0.4A/125Vdc
Conduit connection - 1/2" NPT female
Specific gravity - greater than 0.7 standard, with lower available upon request.
