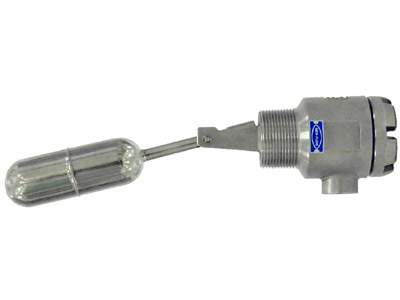

Horizontal Magnetic Level Switch - ABS Type approved product - Type LT201

Float operated level switches suitable for controlling liquid level at a horizontal mounting.
The float equipped with an extended arm moves a coupling magnetic mechanism to actuate
a microswitch to offer ON-OFF contact.

Marine approved level switch
Enclosure housing - weatherproof IP65
Process connection - 1 1/2" NPT male, threaded
Material - wetted parts and housing are 316 Stainless Steel
Temperature limits are -30^oC to +150^oC
Pressure limits - 3.0 mPa, optional upto 4.5mPa
Switch function - SPDT micro switch
Switch rating - 3A/250VAC, 3A/30Vdc, 0.4A/125Vdc
Conduit connection - 1/2" NPT female
Specific gravity - greater than 0.7 standard, with lower available upon request.
