PRESSURE - Gauges

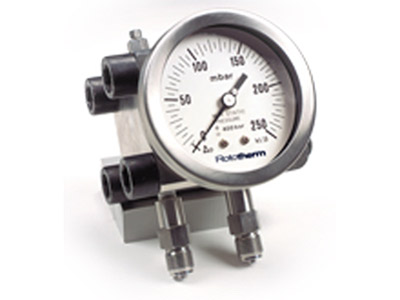

High Static DP gauges
Type - DP360
Pressure ranges between 16 kPa and 2500 kpa
Static - High static pressure of 10000 kPa
Nominal sizes 100 or 150 mm
Mounting - suitable for direct, panel flush, surface mount with clamp, or pipe mounting via 2" clamp.
Case and Bezel - 304 Stainless Steel as standard (316 on request)
Window - standard glass as standard, laminated safety glass on request
Pressure Connections - Stainless Steel 316L, size 1/4" to 1/8" NPT (1/4" NPT female); or 1/2" BSP male on request
Dial - white painted Aluminium with black markings
Pointer - Aluminium with micro adjustment
