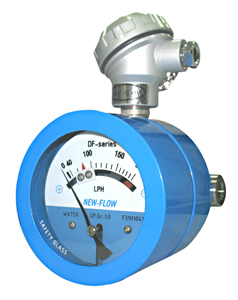

SensMar new, Metal Tube flow meter type DF-2

FLOW - Metal Tube Flow Meter

Metal Tube Flow Meter - (with Alarm switch)
Type - DF-2

The New Flow series DF-20 Metal tube flow meter is suitable for Air or Water
Aluminium case epoxy painted
Stainless Steel 316L wetted parts, with alternative materials on request.

Flow rate ranges:

Water	0.25 ltr/min up to 20 ltr/min; 15 ltr/hr up to 1200 ltr/hr
Air	6 Nltr/min up to 500 Nltr/min; 0.35 Nm3/hr up to 30 Nm3/hr

Screwed process connections (female)
Connection sizes 1/4"NPT, 1/2"NPT, 1/4"BSP or 1/2"BSP
Max. working temperature80⁰C
Max. working pressure standard 200kg/cm²
Protection - IP65
Adjustable micro switch
Load 5A/250VAC/125VAC/30Vdc
Accuracy +/-4% FS
