Metal Tube Flow Meter - (High flow) Type

FLOW - Metal Tube Flow Meter

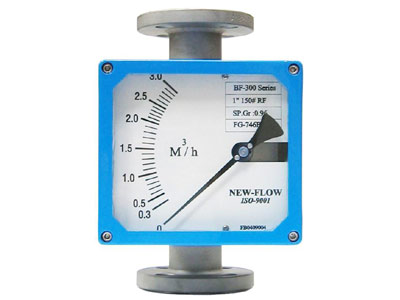

Metal Tube Flow Meter - (High flow)
Type - BF300

The New Flow series BF300 Metal tube flow meter is suitable for high flows of Gas, Liquid or Steam
Standard centre to centre distance 250mm upto 75mm line size. Sizes greater than 75mm becomes 300mm centres.
Aluminium case epoxy painted
Stainless Steel 316L wetted parts, with alternative materials on request.

Flow rate ranges:

Water	4 l/hr to 100,000 l/hr
Air	0.1 Nm³/hr to 1200 NM³/hr

Flanged connections
Sizes from 1/2" through to 5" lines
Temperature range -50^oC to 200^oC
Protection - IP65
Options - switches (micro or reed switch type) or 4-20mA output
