Glass Tube Rotameter VA Flowmeter Type - MPB 630 and 1000 Series Variable Area Flow Meter

FLOW - Glasstube Rotameters

Glass Tube Rotameter VA Flowmeter
Type - MPB 630 and 1000 Series Variable Area Flow Meter

The MPB 630 and 1000 Series Varaiable Area Flowmeter is a highly versatile, broad specification, small flow meter with an integral flow control valve, with stainless steel, or nickel plated brass connections. A widely specified general use flowmeter that can be fitted with a flow failure alarm if required.

Flow rates down to 20cc/min Air are available.

Features:
All St/St construction available, offering excellent corrosion resistance.
Direct reading of instantaneous flow rate.
Easy to read scale.
Frictionless, hence low head loss.
56mm or 93mm tube lengths
Standard or customised flow scales.
St/St connections.
Easy tube removal in situ.
Rear of panel mounting kit available.
Valved or non-valved versions
Long service life
Rear facing connections as standard.
Minimal maintenance.
Polycarbonate safety cover.
Alarm versions available

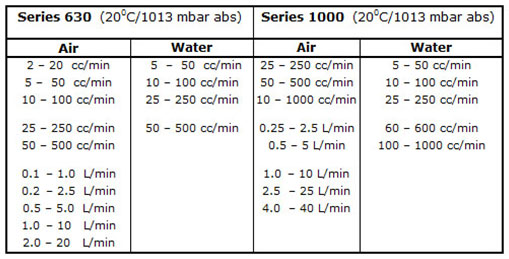

Standard flow ranges below: Series 630
