Glass Tube Rotameter VA Flowmeter Type - MPB 3000 Series Variable Area Flow Meter

FLOW - Glasstube Rotameters

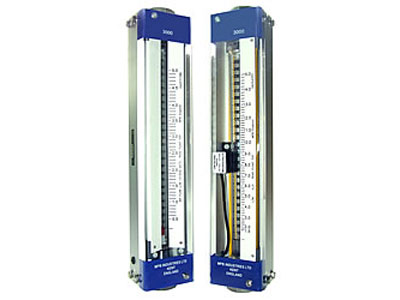

Glass Tube Rotameter VA Flowmeter
Type - MPB 3000 Series Variable Area Flow Meter
With Optional Latching alarm

The MPB 3000 Series Variable Area Flowmeter offers a wide range of flows, both liquid and gas. For low flows these utilise "free floats". Standard flows as low as 50cc/min Air.

Rear of panel mounting kits are available.

Features:
Direct reading of instantaneous.
Plain scale plate for customer flow rates calibration.
Flow rates as low as 50cc/min Air.
Wide range of standard flow rates.
Economical latching alarms.
Lightweight construction.
Integral saftey cover.
Robust design.
Metric scales.
PVC, or Stainless Steel connections are available as standard.
Can be supplied with flanges
In-line or panel mounting.
High resolution scales for maximum accuracy.

Standard flow ranges below:

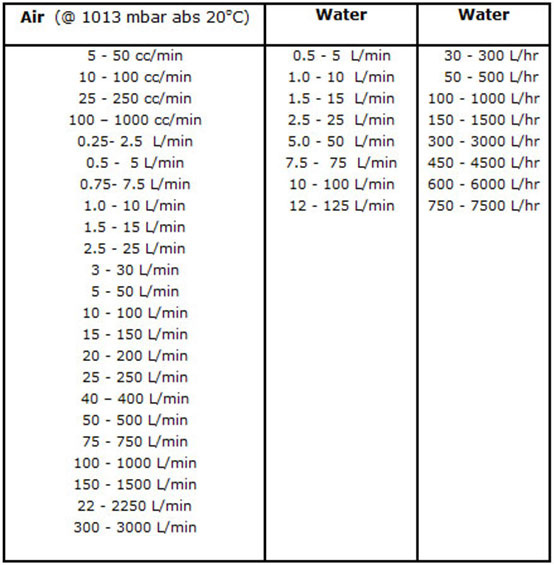

Flowmeter 3000 Standard FLow Ranges Chart
