SensMar new, Flowmeter 1200BVL

FLOW - Glasstube Rotameters

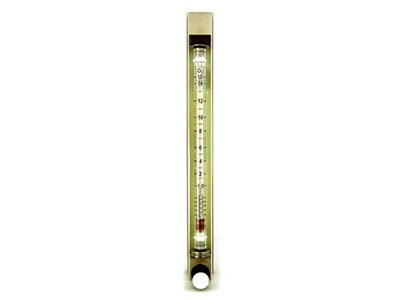

Anaesthetic Glass Tube Rotameter VA Flowmeter
Type - MPB 1200BVL Series

This type of the MPB series Anaesthetic Rotameter Flowmeter is manufactured exclusively to house a 230mm standard length Anaesthetic tube. The overall length of the Rotameter is 300mm, with process centres of 275mm. The Rotameter can be supplied with either straight through or rear facing ¼" BSP connections. The anaesthetic flow tube is fully compliant to ISO 5358 and BS4272.

The Anaesthetic range is also available for Veterinary service.

Features:
Valved or non-valved versions available
Straight through or rear facing connections
Frictionless, hence low head loss
Elegant and robust design
Easy to read scale
Easy in-situ tube removal and re-installation
Standard or customized flow scales available
Direct reading of instantaneous flow rate
Polycarbonate safety cover
Minimal maintenance
Long service life

Colour Banding:
Oxygen – White
Nitrous Oxide – Blue
Air – Black
Carbon Dioxide - Grey

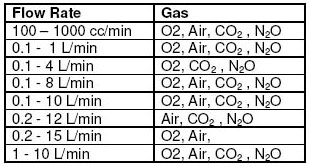

Standard flow ranges below:
