Glass Tube Rotameter VA Flowmeter
Type - MPB 1200 Series Variable Area Flow Meter

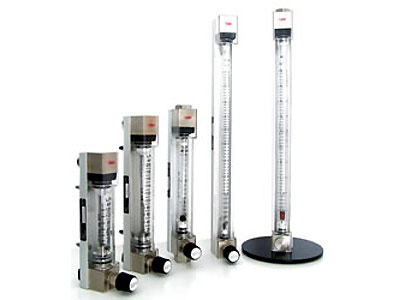

The MPB 1200 Series Variable Area Flowmeter is a widely used standard flowmeter supplied in three lengths, compact, standard and long, ideal for many industrial, process control and analytical applications. These can be supplied with, or without, a flow control valve. Rear facing and straight through connections are available in all versions.

Maximum flow rates of 150 L/min Air and 10 L/min H20 are available.

Supplied with stainless steel, nickel plated brass, or anodised aluminium end connections.

Three standard lengths available;
1200 Long, which has a flow tube length of 295mm (is for use where high resolution scale accuracy is required).
1200 Standard, which has a flow tube length of 138mm, (universal standard tube length).
1200 Compact, which has a flow tube length of 93mm (is for use where space is at a premium).

Features:
All St/St construction available, offering excellent corrosion resistance.
Direct reading of instantaneous flow rate.
Easy to read scale.
Frictionless, hence low head loss.
Standard or customised flow scales.
Nickel Plated Brass, Anodised Aluminium or St/St connections.
Easy tube removal in situ.
Rear of panel mounting kit available.
Valved or non-valved versions
Long service life
Straight through or rear facing connections.
Minimal maintenance.
Polycarbonate safety cover.
Alarm versions available
Intrinsically safe version
Elegant and robust design

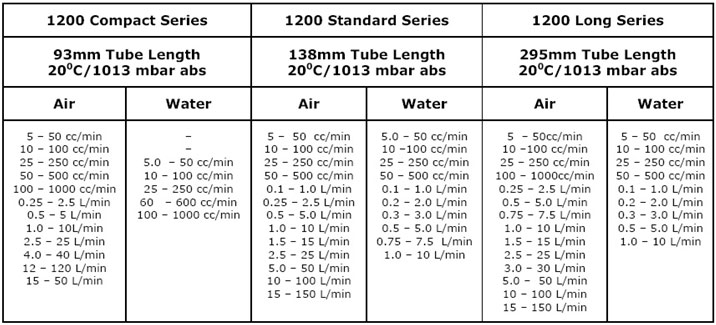

Standard flow ranges below:

Flowmeter 1200 Compact Series Standard Flow Range Chart
