LEVEL - Switches

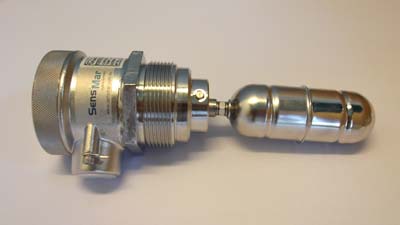

Finetek Level switch
Side mounting float level switch for High or Low level
Float details 41mm diameter x 100mm long, to suit a minimum S.G. of 0.8
Length of arm and float is 155mm from screw top to float bottom
2” BSPP screwed male process connection
1 x SPDT micro switch contact, 5A/250VAC
Enclosure housing 304 St/St IP65
Operating temperature range: -20
o
deg C to 100
o
deg C
