SensMar Explosionproof Pressure Switch

PRESSURE - Switches

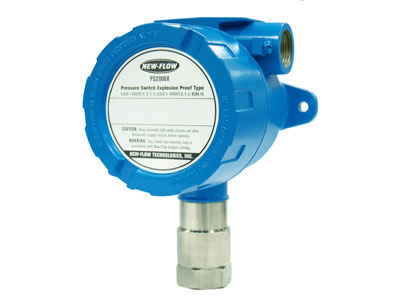

Explosion Proof Pressure Switch
PS2000X

The PS2000X is an explosion proof pressure switch which is designed to be used in control systems. Has high set point repeatability and narrow dead band features. A variety of range selections are available upon request. Easily adjusted set point.

Class I, Groups A, B, C, D
Class II, groups E, F, G; NEMA 4X
Adjustable pressure Ranges from 10 - 2400 psi
Proof pressure to 4000 psi
Temperature range from -25^oC to +205^oC
Housing - die cast Aluminium, epoxy painted
Wetted parts - Stainless Steel 316L
pressure element - welded diaphragm
Process Connection - 1/2" or 1/4" NPT Female
Conduit connection - 3/4" or 1/2" NPT Female
Switch data - one SPDT & two SPDT Microswitch,
15amps 125/250V,
Gold contact microswitch 1 Amp 125/250VAC
