Direct Mount Hydrostatic liquid level transmitters

LEVEL - Sensors

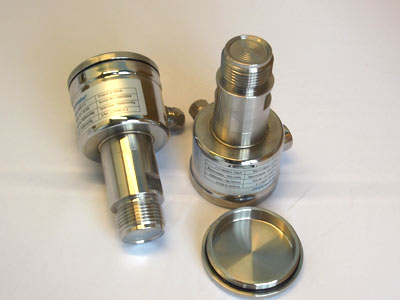

Direct Mount Hydrostatic liquid level transmitters - Type 8000 Series

All Stainless Steel transmitter with 316 Stainless Steel welded diaphragm
Accuracy 0.2% of span
Zero / Span adjustable
Rugged compact design
4-20mA output
Temperature compensated
Intrinsically Safe ATEX II 1G EEx ia IICT4
Marine approved
Protection to IP66 as standard, IP68 Optional
Vacuum, Gauge or Absolute ranges
Optional 3 ½" programmable display display
Measuring ranges: 0,1 bar to 50 bar
Output signal: 4-20 mA, 2-wire
Adjustment: Zero and span internally
Overall accuracy: 0,2% of adjusted span
Power supply: 13 to 40 VDC
Electrical connection: PG9 / 1/2´´ NPT / M20
Process temperature: –20°C to +80°C
Ambient temperature: –20°C to +65°C
