PRESSURE - Switches

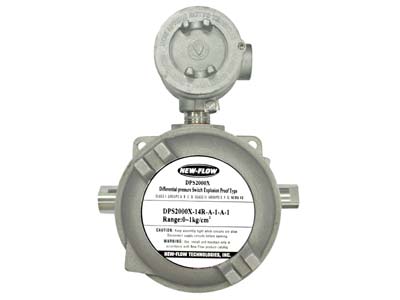

Differential Pressure Switch
DPS2000X
The DPS2000X Differential Pressure switch consists of high and low pressure ports. Differential pressure switch due to differential pressure of high side and low side with magnet coupling combined with micro switch for using in control system.
Accuracy +/- 2%
Housing - Die cast Aluminium alloy
Pressure element - wetted parts in 316 St/St
Process connection - 1/4" NPT female, option with adapter available
Conduit connection - 1/2", 3/4" NPT female, option available
Working pressure 200 kg/cm
2
Working temperature 80
o
C
Ambient temperature -25
o
C to 100
0
C
Adjustable micro switch - one adjustable alarm contact
Load 5A/250VAC/125VAC/30Vdc
