Diesel Exhaust Indicator Type

TEMPERATURE - Gauges

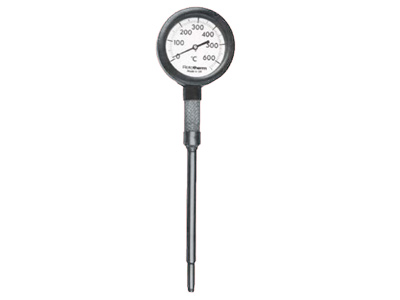

Diesel Exhaust Temperature Indicator
Type - NC3 & NR3

The Rototherm range of diesel exhaust temperature indicators provide an accurate and reliable indication of the exhaust gas temperatures of diesel engines and generators.

The stem is fitted with a unique anti-resonant section which dampens out vibration of the instrument head, and eliminates the need for oil filling.

100mm dial sizes, marked with black characters on white background.
Unique vibration dampening system.
Non Toxic "Filsafe" Filling.
Direct reading rigid stem or remote reading capillary versions available.
Temperature ranges 0-650^oC, 0-1200⁰F, or dual scale

Stem lengths 300, 400 or 500mm
Stem diameters 12.7mm or 15.9mm

The stem is fitted with a unique anti resonant section which damps out vibration of the instrument head, and eliminates the need for oil filling. The use of the capillary type enables all the dials to be located on a single panel to provide immediate visual comparison of the performance of each cylinder.

Technically advanced features in design, coupled with strict quality control results in a thoroughly dependable instrument which is widely accepted for Naval service throughout the world.

Quality control complies with Ministry of Defence assurance requirement specified in Defence Standard AQAP 4.

NC3 - Capillary temperature indicator - Diecast aluminium, finished black, suitable for flush or panel mounting.

NR3 - Rigid stem temperature indicator - Glass filled polyester resin, non toxic, fire retardant, finished black.
